Diagrams/Models can be created and controlled using the [Structure Tree] in the Project View.

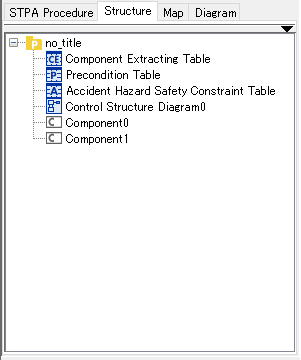

Diagrams, Tables and Components are displayed in the Structure Tree.
- Open a Diagram/Table by selecting it

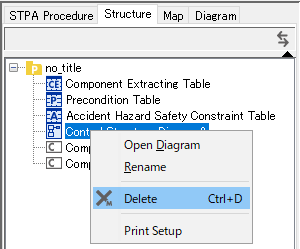

Double-click on the target Diagram/Table or right-click on the target Diagram/Table and select [Open Diagram]/[Open Table].
- Open all the Diagrams and Tables under the Project
Right-click on the Project and select [Open All Diagrams].
The menu of the structure tree is displayed by clicking the down arrow.

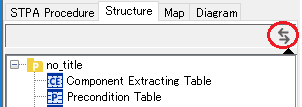

Toggle this “Synchronize with Diagram Editor” switch ON to enable synchronization of the selected diagram in the Structure Tree with the Diagram open in the Diagram Editor.

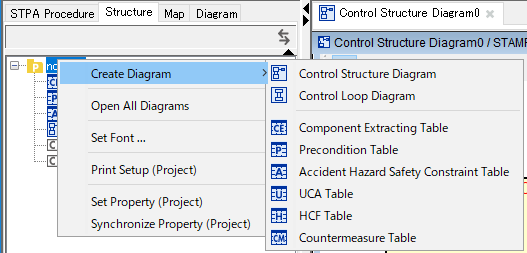

Right-click on the target node in the Structure Tree and select [Create Diagram]. And select a Diagram Type.
Right-click on the target element and select [Modify Name].

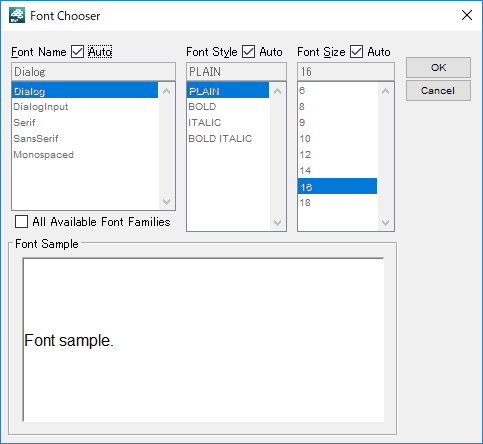

This applies for all the model elements. When font is changed, all the size of model elements will be adjusted automatically.
Please refer to Print Setup (Project) for details.
Right-click on the project in the Structure Tree and select [Set Property (Project)] and specify the style for project.
Right-click on the project in the Structure Tree and select [Synchronize Property (Project)] to synchronize the setting of System Properties to the current project.
